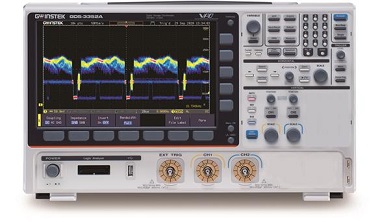

GDS-3352A
|
通道
|
2 + Ext
|
|
|
帶寬
|
DC ~ 350MHz (–3dB) @50Ω/1MΩ input impedance
|
|
|
上升時間
|
1ns (calculated)
|
|
|
帶寬限制
|
20MHz/100MHz/200MHz*
|
|
GDS-3652A
|
通道
|
2 + Ext
|
|
|
帶寬
|
DC ~ 650MHz (–3dB) @ 50Ω input impedance
DC ~ 500MHz (–3dB) @1MΩ input impedance
|
|
|
上升時間
|
535ps (calculated)
|
|
|
帶寬限制
|
20MHz/100MHz/200MHz/300MHz*
|
|
*帶寬限制公差為±10%。
|
|
垂直靈敏度
|
分辨率
|
8 bits (Max.12 bits with Hi Res)
For 1MΩ input impedance: 1mV*~10V/div
For 50Ω input impedance: 1mV*~1V/div
|
|
輸入耦合
|
AC, DC, GND
|
|
輸入阻抗
|
1MΩ// 22pF approx.
|
|
DC增益精度
|
1mV: ±5% full scale
≥2mV: ±3% full scale
|
|
極性
|
Normal & Invert
|
|
最大輸入電壓
|
For 1MΩ input impedance: 300Vrms, CAT II
For 50Ω input impedance: 5Vrms max.
|
|
偏移位置范圍
|
For 1MΩ input impedance:
1mV/div ~ 20mV/div :±1V; 50mV/div ~ 500mV/div: ±10V
1V/div ~ 5V/div : ±100V; 10V/div : ±1000V
For 50Ω input impedance:
1mV/div ~ 50mV/div:±1V; 100mV/div ~ 1V/div : ±10V
|
|
波形信號處理
|
+, -, ×, ÷, FFT, User Defined Expression
FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning or Blackman.
|
|
觸發
|
Source
|
CH1, CH2, Line, EXT
|
|
觸發模式
|
Auto (supports Roll Mode for 100ms/div and slower), Normal, Single
|
|
觸發類型
|
Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Timeout, Alternate, Event-Delay(1~65535 events), Time-Delay(Duration, 4ns~10s), Bus (UART, I2C, SPI, CAN, LIN)
|
|
Holdoff 范圍
|
4ns to 10s
|
|
耦合
|
AC, DC, LF rej., HF rej., Noise rej.
|
|
靈敏度
|
1div
|
|
外部觸發
|
Range
|
±20V
|
|
靈敏度
|
DC ~ 100MHz Approx. 100mV
100MHz ~ 350MHz Approx. 150mV
|
|
輸入阻抗
|
1MΩ±3%~22pF
|
|
*:在1mV/div和2mV/div下，帶寬限制為20MHz。
|
|
水平
|
時基范圍
|
1ns/div ~ 1000s/div (1-2-5 increments)
ROLL: 100ms/div ~ 1000s/div
|
|
預觸發
|
10 div maximum
|
|
后觸發
|
10,000,000 div maximum.
|
|
時基精度
|
±5 ppm, about ±2ppm increase in error per year
|
|
信號采集
|
實時采樣率
|
5GSa/s one channel;
2.5GSa/s dual channels
|
|
記錄長度
|
Max. 200Mpts /CH
|
|
采集模式
|
Normal, Average, High Resolution, Peak Detect, Single
|
|
|
峰值檢測
|
400ps (typical)
|
|
|
平均
|
Selectable from 2 to 256
|
|
|
分段數
|
1 to 490,000 maximum
|
|
X-Y 模式
|
X-Axis 輸入
|
Channel 1
|
|
Y-Axis 輸入
|
Channel 2
|
|
相位偏移
|
±3° at 100kHz
|
|
光標和測量
|
光標
|
Amplitude, Time, Gating available;
Unit: Seconds(s), Hz (1/s), Phase (degree), Ratio (%).
|
|
自動測量
|
38 sets with indicator: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker, Flicker Idx ,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase.
|
|
光標測量
|
Voltage difference between cursors(?V)
Time difference between cursors(?T)
|
|
自動計數器
|
6 digits, range from 2Hz minimum to the rated bandwidth
|
|
控制面板功能
|
Autoset
|
Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with “Undo Autoset”, “Fit Screen”/ “AC Priority” mode, and “Fine Scale” functions.
|
|
保存設置
|
20 sets
|
|
保存波形
|
20 sets
|
|
|
保存參考波形
|
4 sets
|
|
電源測量
(選配)
|
Power Quality, Harmonics, Ripple, In-rush current, Switching Loss, Modulation, SOA, Transient, Efficiency, B-H curve, Control Loop Response, PSRR, Turn On/Off
|
|
AWG
|
一般
|
|
|
通道
|
2
|
|
采樣率
|
200MSa/s
|
|
垂直分辨率
|
14 bits
|
|
最大頻率
|
25 MHz
|
|
波形
|
Sine, Square, Pulse, Ramp, DC, Noise
Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac
|
|
輸出范圍
|
20 mVpp to 5 Vpp, HighZ;
10 mVpp to 2.5 Vpp, 50Ω
|
|
輸出分辨率
|
1mV
|
|
輸出精度
|
2% (1 kHz)
|
|
偏移范圍
|
±2.5 V, HighZ; ±1.25 V, 50 Ω
|
|
偏移分辨率
|
1mV
|
|
Sine
|
|
|
頻率范圍
|
100 mHz to 25 MHz
|
|
平坦度
(relative to 1 kHz)
|
±0.5 dB < 15MHz;
±1dB 15MHz~25MHz
|
|
諧波失真
|
-40 dBc
|
|
雜散（非諧波）
|
-40 dBc
|
|
總諧波失真
|
1%
|
|
S/N Ratio
|
40 dB
|
|
方波/脈沖波
|
|
|
頻率范圍
|
Square: 100 mHz to 15 MHz
|
|
上升/下降時間
|
< 15ns
|
|
過沖
|
< 3 %
|
|
占空比
|
Square: 50%
Pulse: 0.4% to 99.6%
|
|
最小脈沖寬度
|
30ns
|
|
抖動
|
500 ps
|
|
斜坡
|
|
|
頻率范圍
|
100 mHz to 1MHz
|
|
線性度
|
1%
|
|
對稱性
|
0 to 100%
|
|
頻譜分析儀
|
頻率范圍
|
DC~2.5GHz Max, dual channel with spectrogram (based on Advanced FFT).
Notice: Frequency which exceeds analog front end bandwidth is uncalibrated
|
|
Span
|
1kHz~2.5GHz (Max.)
|
|
分辨率帶寬
|
1Hz~2.5MHz (Max.)
|
|
參考電平
|
-80dBm to +40dBm in steps of 5dBm
|
|
垂直單位
|
dBV RMS; Linear RMS; dBm
|
|
垂直位置
|
-12divs to +12divs
|
|
垂直比例
|
1dB/div to 20dB/div in a 1-2-5 Sequence
|
|
顯示的平均噪聲級
|
1V/div ? -40dBm, Avg :16
100mV/div ? -60dBm, Avg :16
10mV/div ? -80dBm, Avg :16
|
|
雜散響應
|
2nd harmonic distortion < 35dBc
3rd harmonic distortion < 40dBc
|
|
頻域跟蹤類型
|
Normal; Max Hold; Min Hold; Average (2 ~ 256)
|
|
檢測方法
|
Sample; +Peak; -Peak; Average
|
|
FFT 窗
|
FFT Factor:
Hanning 1.44
Rectangular 0.89
Hamming 1.30
Blackman 1.68
|
|
邏輯分析儀(選配)
|
采樣率
|
1GSa/s
|
|
帶寬
|
200MHz
|
|
記錄長度
|
Per Channel 10M points (max)
|
|
輸入通道
|
16 Digital (D15 - D0)
|
|
觸發類型
|
Edge, Pattern, Pulse Width, Serial bus (I2C, SPI, UART, CAN, LIN), Parallel Bus
|
|
臨界值分組
|
Settable thresholds for:
D0-D3, D4-D7, D8-11, D12-15
|
|
臨界值選擇
|
TTL, CMOS(5V,3.3V,2.5V), ECL, PECL,0V ,User Defined
|
|
用戶定義的臨界值范圍
|
±5V
|
|
最大輸入電壓
|
±40 V
|
|
最小驅動電壓
|
±250 mV
|
|
垂直分辨率
|
1 bit
|
|
Frequency Response Analyzer
|
頻率范圍
|
20Hz to 25MHz
|
|
輸入與輸出源
|
Channel 1 ~ 2
|
|
測試點數量
|
10, 15, 30, 45, 90 points per decade selectable for logarithm scale;
2 ~ 1000 points selectable for linear scale
|
|
動態范圍
|
> 80dB (typical)
|
|
測試振幅
|
10mVpp to 2.5Vpp into 50Ω, 20mVpp to 5Vpp into High-Z, Fixed test amplitude or custom amplitude for each decade.
|
|
測試結果
|
Logarithmic or linear overlaid gain and phase plot, may also overlay with reference plots for cross comparison. Test results saved in csv format for offline analysis.
|
|
手動測量
|
Tracking gain and phase markers
|
|
繪圖尺度
|
Auto-scaled during test
|
|
顯示
|
TFT LCD 類型
|
10.2" TFT LCD WVGA color display
|
|
顯示分辨率
|
800 horizontal × 480 vertical pixels (WVGA)
|
|
內插方式
|
Sin(x)/x
|
|
波形顯示
|
Dots, vectors, variable persistence (16ms~4s), infinite persistence, gray or color waveforms.
|
|
波形更新率
|
200,000 waveforms per second, maximum
|
|
顯示格線
|
8 x 10 divisions
|
|
顯示模式
|
YT, XY
|
|

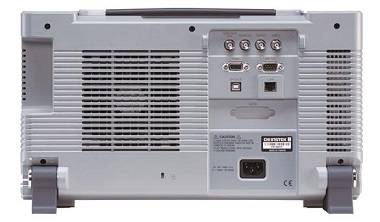

接口
|
USB Port
|
USB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1
|
|
以太網 (LAN)
|
RJ-45 connector X1, 10/100Mbps with HP Auto-MDIX
|
|
Go-NoGo BNC
|
5V Max/10mA open collector output X1
|
|
|
Power Supply Receptacles
|
±12V / 600mA for current probe use.
Two sets of power supply receptacles for 2CH models;
|
|
|
RS232C
|
DB-9 male connector X1
|
|
|
VGA 影像輸出
|
DB-15 female connector X1, monitor output for display on VGA monitor
|
|
|
選配的 GPIB 模組
|
Fully programmable with IEEE488-2 compliance
|
|
|
Kensington 安全鎖插槽
|
Rear-panel security slot connects to standard Kensington-style lock.
|
|
其他
|
多國語言菜單
|
Available
|
|
操作環境
|
Temperature: 0°C to 50°C. Relative Humidity ≤ 80% at 40°C or below;
≤ 45% at 41°C ~ 50°C.
|
|
屏幕幫助
|
Available
|
|
時間功能
|
Time and Date, Provide the Date/Time for saved data
|
|
內建Flash 存儲空間
|
800M bytes Single-Level Cell flash memory
|
|
內建APP
|
Go/NoGo, DVM, DataLog, Digital Filter, Frequency Response Analyzer, Mask, Mount Remote Disk, Demo
|
|
|
用戶自定義按鍵
|
User can select one of the several different preset functions as shortcut key.
|
|
|
額定電壓范圍與功耗
|
AC 100V ~ 240V, 50Hz ~ 60Hz, auto selection. power consumption:100W
|
|
|
重量
|
Approx. 4.6kg
|
|
|
尺寸
|
420mm(W)X 253mm(H)X 113.8mm(D)
|
|
|
|
|
