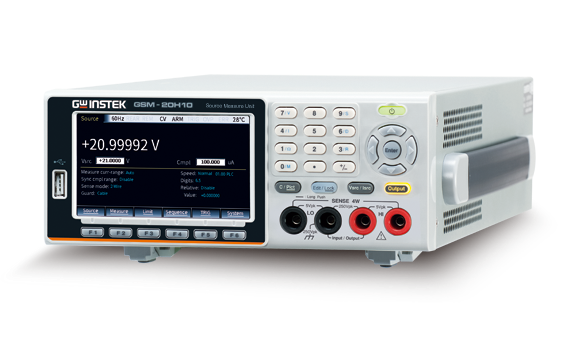

Maximum Range
|
Voltage
|
±210V
|
|
Current
|
±1.05A
|
|
Power
|
22W
|
|
Voltage Resolution
|
1μV
|
|
Current Resolution
|
10pA
|
|
Source
|
DC Voltage
|
Output Voltage
|
±21V/ ±1.05A, ±210V/±105 mA
|
|
Current Limit
|
Min. 0.1% of range
|
|
Programming Resolution
|
1μV, ±200.000mV range
|
|
10μV, ±2.00000V range
|
|
100μV, ±20.0000V range
|
|
1mV, ±200.000V range
|
|
Programming Accuracy 1
|
±(0.02%+600μV), ±200.000mV range
|
|
±(0.02%+600μV), ±2.00000V range
|
|
±(0.02%+2.4mV), ±20.0000V range
|
|
±(0.02%+24mV), ±200.000V range
|
|
Load Regulation
|
0.01% of range + 100μV
|
|
Line Regulation
|
0.01% of range
|
|
Overshoot
|
<0.1% typical (full scale step, resistive load,10mA range)
|
|
Recovery Time (1000%Load Change)
|
<250μs (within 0.1% plus load regulation errors, 1A and 100mA compliance.)
|
|
Ripple and Noise
|
4mV rms(20Hz~ 1MHz) 10mVpp(20Hz~ 1MHz)
|
|
Temperature Coefficient
(0°–18°C & 28°–50°C)
|
±(0.15 × accuracy specification)/°C
|
|
DC Current
|
Output Current
|
±1.05A /±21V, ±105 mA /±210V
|
|
Voltage Limit
|
Min. 0.1% of range
|
|
Programmed Source Resolution
|
10pA, ±1.00000μA range
|
|
100pA, ±10.0000μA range
|
|
1nA, ±100.000μA range
|
|
10nA, ±1.00000mA range
|
|
100nA, ±10.00000mA range
|
|
1μA, ±100.000mA range
|
|
10μA, ±1.00000A range
|
|
Programmed Source Accuracy 1
|
±(0.035%+600pA), ±1.00000μA range
|
|
±(0.033%+2nA), ±10.0000μA range
|
|
±(0.031%+20nA), ±100.000μA range
|
|
±(0.034%+200nA), ±1.00000mA range
|
|
±(0.045%+2μA), ±10.00000mA range
|
|
±(0.066%+20μA), ±100.000mA range
|
|
±(0.27%+900μA), ±1.00000A range
|
|
Load Regulation
|
0 0.01% of range + 100pA
|
|
Line Regulation
|
0.01% of range
|
|
Overshoot
|
<0.1% typical (1mA step, RL = 10kΩ, 20V range).
|
|
Temperature Coefficient
(0°–18°C & 28°–50°C)
|
±(0.15 × accuracy specification)/°C
|
|
General
|
Output Settling Time2
|
100μs typical Time
|
|
Output Rise Time (±30%)
|
300μs, 200V range, 100mA compliance.
|
|
150V/μs, 20V range, 100mA compliance.
|
|
DC Floating Voltage
|
Output can be floated up to ±250VDC
|
|
Remote Sense
|
Up to 1V drop per load lead.
|
|
Compliance Accuracy
|
Add 0.3% of range and ±0.02% of reading to base specification.
|
|
Range Change Overshoot 3
|
Adjacent range changes between 200mV, 2V and 20V ranges, 100mV typical.
|
|
Minimum Compliance Value
|
0.1% of range
|
|
Command Processing Time 4
|
Autorange On:10ms.Autorange Off:7ms.
|
|
Measurement
|
Voltage
|
Input Resistance
|
>10 G?
|
|
Measurement Resolution
|
1μV, ±200.000mV range
|
|
10μV, ±2.00000V range
|
|
100μV, ±20.0000V range
|
|
1mV, ±200.000V range
|
|
Measurement Accuracy
|
±(0.012%+300μV), ±200.000mV range
|
|
±(0.012%+300μV), ±2.00000V range
|
|
±(0.015%+1.5mV), ±20.0000V range
|
|
±(0.015%+10mV), ±200.000V range
|
|
Temperature Coefficient
(0°–18°C & 28°–50°C)
|
±(0.15 × accuracy specification)/°C
|
|
Current
|
Voltage Burden (4-wire mode)
|
< 1mV
|
|
Programmed Source Resolution
|
10pA, ±1.00000μA range
|
|
100pA, ±10.0000μA range
|
|
1nA, ±100.000μA range
|
|
10nA, ±1.00000mA range
|
|
100nA, ±10.00000mA range
|
|
1μA, ±100.000mA range
|
|
10μA, ±1.00000A range
|
|
Programmed Source Accuracy1
|
±(0.029%+300pA)), ±1.00000μA range
|
|
±(0.027%+700pA), ±10.0000μA range
|
|
±(0.025%+6nA), ±100.000uA range
|
|
±(0.027%+60nA), ±1.00000mA range
|
|
±(0.035%+600nA), ±10.00000mA range
|
|
±(0.055%+6μA), ±100.000mA range
|
|
±(0.22%+570μA), ±1.00000A range
|
|
Temperature Coefficient
(0°–18°C & 28°–50°C)
|
±(0.1 × accuracy specification) / °C
|
|
Resistance
|
Range
|
Resolution
|
Test current
|
Accuracy
|
|
<2.00000Ω
|
---
|
---
|
Source IACC+Meas.VACC
|
|
2.00000Ω
|
10μΩ
|
---
|
Source IACC+Meas.VACC
|
|
20.0000Ω
|
100μΩ
|
100mA
|
±(0.1%+0.003 Ω), Normal
|
|
±(0.07%+0.001 Ω), Enhanced
|
|
200.000Ω
|
1mΩ
|
10mA
|
±(0.08%+0.03 Ω), Normal
|
|
±(0.05%+0.01 Ω), Enhanced
|
|
2.00000kΩ
|
10mΩ
|
1mA
|
±(0.07%+0.3 Ω), Normal
|
|
±(0.05%+0.1 Ω), Enhanced
|
|
20.0000kΩ
|
100mΩ
|
100μA
|
±(0.06%+3 Ω), Normal
|
|
±(0.04%+1 Ω), Enhanced
|
|
200.000kΩ
|
1Ω
|
10μA
|
±(0.07%+30 Ω), Normal
|
|
±(0.05%+10 Ω), Enhanced
|
|
2.00000MΩ
|
10Ω
|
5μA
|
±(0.11%+300 Ω), Normal
|
|
±(0.05%+100 Ω), Enhanced
|
|
20.0000MΩ
|
100Ω
|
0.5μA
|
±(0.11%+1k Ω), Normal
|
|
±(0.05%+500 Ω), Enhanced
|
|
200.000MΩ
|
1kΩ
|
100nA
|
±(0.66%+10k Ω), Normal
|
|
±(0.35%+5k Ω), Enhanced
|
|
>200.000M Ω
|
---
|
---
|
Source IACC+Meas.VACC
|
|
Temperature Coefficient
(0°–18°C & 28°–50°C)
|
±(0.15 × accuracy specification)/°C
|
|
Source I mode, Manual OHMS
|
Total uncertainty = I source accuracy + V measure accuracy (4-wire remote sense).
|
|
Source V mode, Manual OHMS
|
Total uncertainty = V source accuracy + I measure accuracy (4-wire remote sense).
|
|
6-wire OHMS mode
|
Available using active ohms guard and guard sense. Max. Guard Output Current: 50mA (except 1A range). Accuracy is load dependent.
|
|
Guard Output Impedance
|
<0.1? in ohms mode
|
|
System Speed
|
Maximum Range Change Rate
|
75/second
|
|
Maximum Measure Auto Range Time
|
40ms (fixed source) 6
|
|
Sequence reading rates7 (rdg./second) for 60Hz (50Hz)
|
Speed
|
NPLC/ Trig Origin
|
Measure
|
Source-Measure 9
|
|
TO MEM.
|
TO GPIB
|
TO MEM.
|
TO GPIB
|
|
Fast
|
0.01 / internal
|
2081 (2030)
|
1198 (1210)
|
1551 (1515)
|
1000 (900)
|
|
488.2
|
0.01 / external
|
1239 (1200)
|
1079 (1050)
|
1018 (990)
|
916 (835)
|
|
Medium
|
0.1 / internal
|
510 (433)
|
509 (433)
|
470 (405)
|
470 (410)
|
|
488.2
|
0.1 / external
|
438 (380)
|
438 (380)
|
409 (360)
|
409 (365)
|
|
Normal
|
1 / internal
|
59 (49)
|
59 (49)
|
58 (48)
|
58 (48)
|
|
488.2
|
1 / external
|
57 (48)
|
57 (48)
|
57 (48)
|
57 (47)
|
|
Speed
|
NPLC/ Trig Origin
|
Source-Measure Pass/Fail test 8,9
|
Measure Memory 9
|
|
TO MEM.
|
TO GPIB
|
TO MEM.
|
TO GPIB
|
|
Fast
|
0.01 / internal
|
902 (900)
|
809 (840)
|
165 (162)
|
164 (162)
|
|
488.2
|
0.01 / external
|
830 (830)
|
756 (780)
|
163 (160)
|
162 (160)
|
|
Medium
|
0.1 / internal
|
389 (343)
|
388 (343)
|
133 (126)
|
132 (126)
|
|
488.2
|
0.1 / external
|
374 (333)
|
374 (333)
|
131 (125)
|
131 (125)
|
|
Normal
|
1 / internal
|
56 (47)
|
56 (47)
|
44 (38)
|
44 (38)
|
|
488.2
|
1 / external
|
56 (47)
|
56 (47)
|
44 (38)
|
44 (38)
|
|
Single Reading Operation Rates (rdg./second) for 60Hz (50Hz)
|
Speed
|
NPLC/ Trig Origin
|
Measure
|
Source-Measure 9
|
Source-Measure Pass/Fail test 8,9
|
|
TO GPIB
|
TO GPIB
|
TO GPIB
|
|
Fast(488.2)
|
0.01 / internal
|
256 (256)
|
79 (83)
|
79 (83)
|
|
Medium(488.2)
|
0.1 / internal
|
167 (166)
|
72 (70)
|
69 (70)
|
|
Normal(488.2)
|
1 / internal
|
49 (42)
|
34 (31)
|
35 (30)
|
|
Component Interface Handler Time for 60Hz (50Hz):8, 10
|
Speed
|
NPLC/ Trig Origin
|
Measure
|
Source Pass/Fail test
|
Source-Measure Pass/Fail test 9,11
|
|
TO GPIB
|
TO GPIB
|
TO GPIB
|
|
Fast
|
0.01 / internal
|
1.04 ms (1.08 ms)
|
0.5 ms (0.5 ms)
|
4.82 ms (5.3 ms)
|
|
Medium
|
0.1 / internal
|
2.55 ms (2.9 ms)
|
0.5 ms (0.5 ms)
|
6.27 ms (7.1 ms)
|
|
Normal
|
1 / internal
|
17.53 ms (20.9 ms)
|
0.5 ms (0.5 ms)
|
21.31 ms (25.0 ms)
|
|
System General
|
Load Impedance
|
Stable into 20,000pF typical
|
|
Differential mode Voltage
|
250 VPk
|
|
Common mode Voltage
|
250 VDC
|
|
Common mode Isolation
|
>10G?, <1000pF
|
|
Over Range
|
105% of range, source and measure.
|
|
Max. Voltage drop
|
5V
|
|
Max. Sense lead Resistance
|
1M?
|
|
Sense input Impedance
|
>100G ?
|
|
Guard offset Voltage
|
<150μV, typical
|
|
Source output modes
|
Fixed DC level, Memory List (mixed function), Stair (linear and log)
|
|
Source memory list
|
100 points max.
|
|
Memory buffer
|
5,000 readings @ 5 digits (two 2,500 point buffers). Includes selected measured value(s) and time stamp. Lithium battery backup(3 yr+ battery life).
|
|
Programmability
|
IEEE-488.2 (SCPI)
|
|
5 user-definable power-up states plus factory default and *RST.
|
|
Digital I/O Connector
|
Active low input.
|
|
Start of test, end of test, 3 category bits.
|
|
+5V@ 300mA supply.
|
|
1 trigger input, 4 TTL/Relay Drive outputs (33V @ 500mA, diode)
|
|

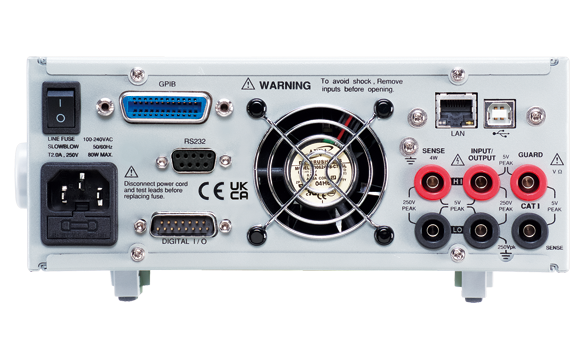

Remote Interface
|
USB/GPIB/LAN/RS-232
|
|
Insulation
|
Chassis and Terminal
|
20M? or above (DC 500V)
|
|
Chassis and AC cord
|
30M? or above (DC 500V)
|
|
Operation Environment
|
Indoor use, Altitude: ≤ 2000m Ambient temperature: 0 ~ 40°C Relative humidity: ≤ 80%
|
|
Installation category: II, Pollution degree: 2
|
|
Storage Environment
|
Temperature: -20?C ~ 70?C
|
|
Humidity: < 80%
|
|
Input Power
|
100-240VAC, 50-60Hz
|
|
Power Consumption
|
80W
|
|
Accessories
|
CD User manual x1, Quick Start manual x1
|
|
Test lead GTL-207A x 1, GTL-108A x 1, ALLIGATOR CLIP x 2
|
|
Dimensions
|
214 (W) x 86 (H) x 356.5 (D) mm
|
|
Weight
|
Approx. 4.8kg
|
|
|
|
|
|
|
|
|
|
|
|
|
